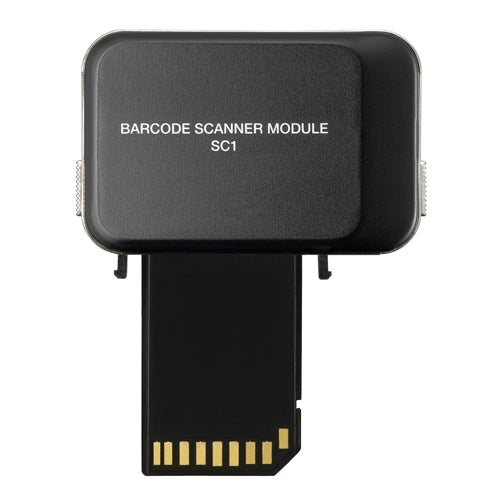

The Olympus SC-1 Barcode Scanner Module enables automatic allocations of voice files to unique case, client or patient records. It eliminates the possibility of mistyping to ensure 100% conclusive and secure identification. This therefore boosts workflow efficiency, effectiveness and veracity.

The SC-1 Barcode Scanner Module has been specifically designed for use with the Olympus DS-5000.

Key Features

• The Olympus Barcode Scanner allows you to link dictations directly to patient records, client numbers or similar.
• The SC1 can be easily mounted onto the Olympus DS-5000iD, DS-5000 and the Olympus DR-2300
• It allows the user receiving a unique number by simply scanning the related barcode.
• Compatible Barcodes: EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, Code39, Code93, Code128, Codabar, MSI, Interleaved 2 of 5, RSS-14, RSS-Limited, RSS-Expanded
• Laser Class: Class 1 laser product
• Code length: Up to 30 digits
• Working Range: up to 25 cm or 10 inches
• Scan Beam Deflection Angle: 80 degrees
• Batch Scanning and further Workflow options together with Olympus Dictation Management Software "DSS Player Pro R5"

What's in the Box

Olympus SC-1 Barcode Scanner Module
